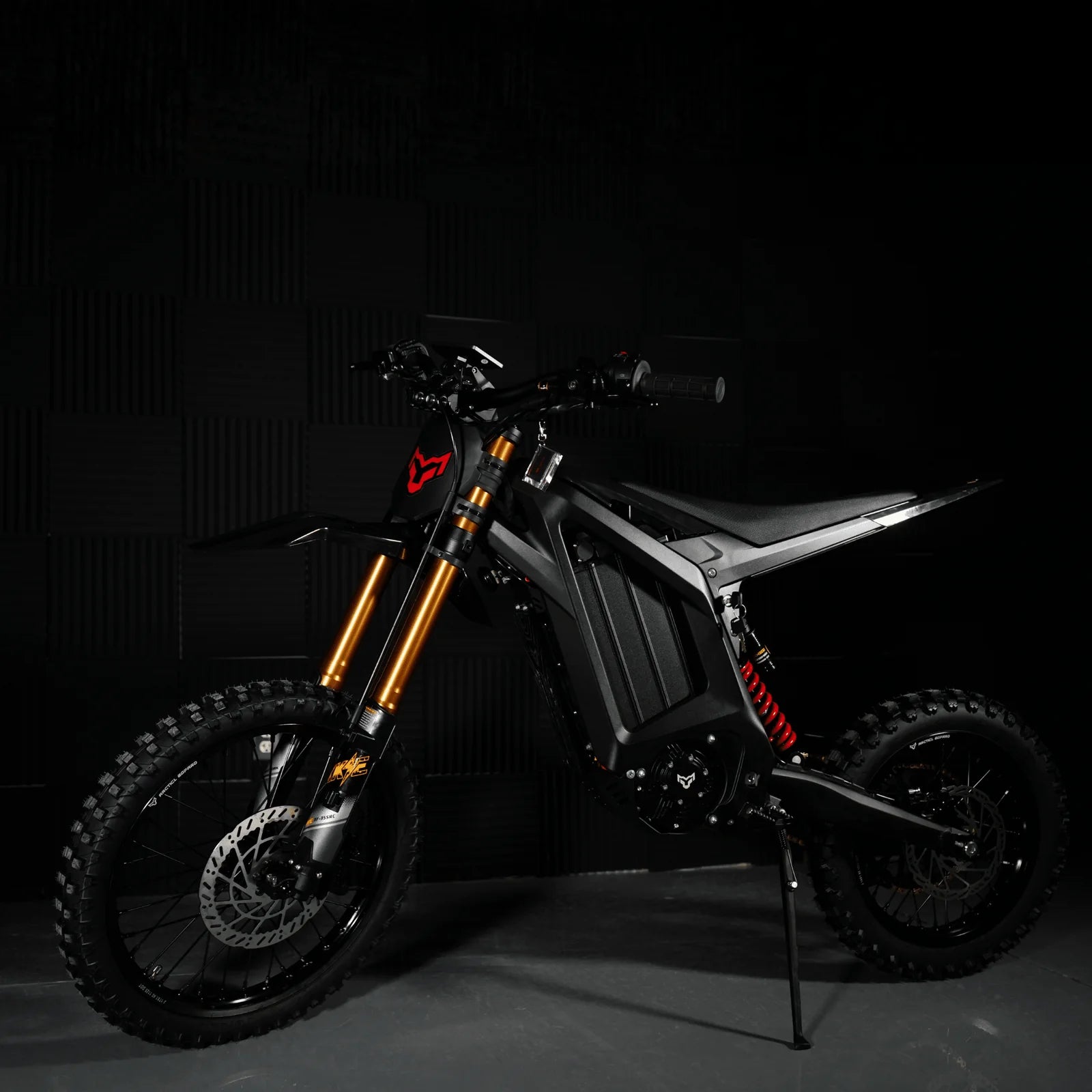

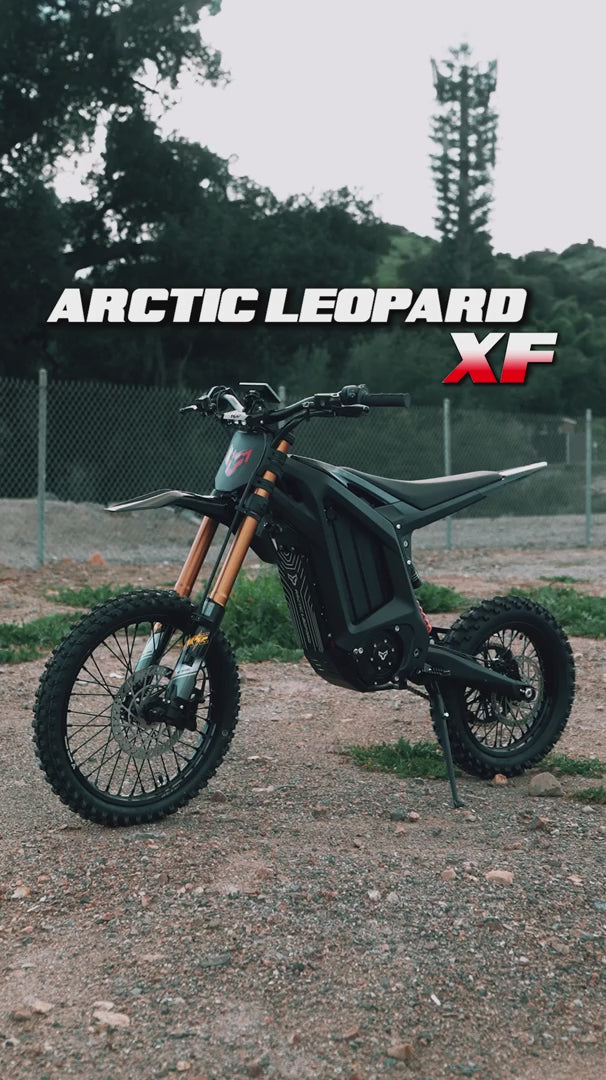

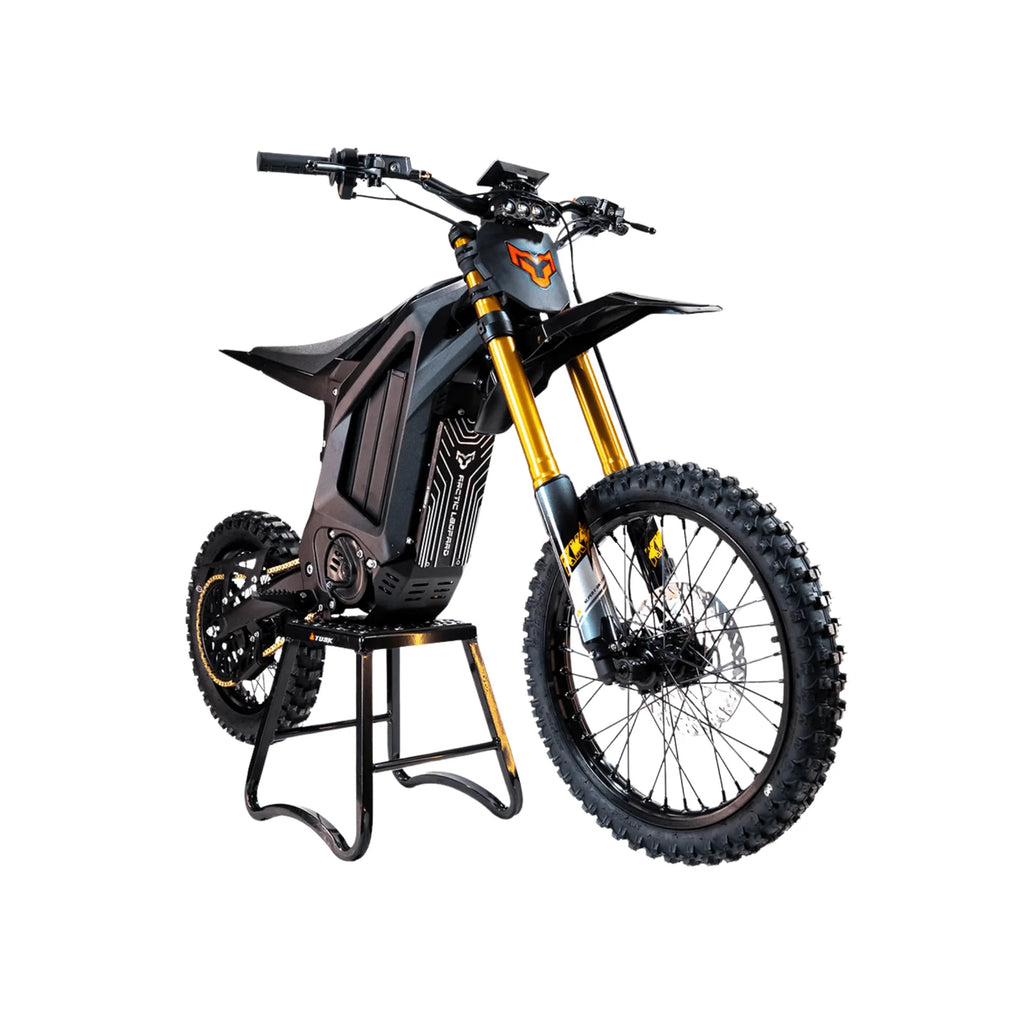

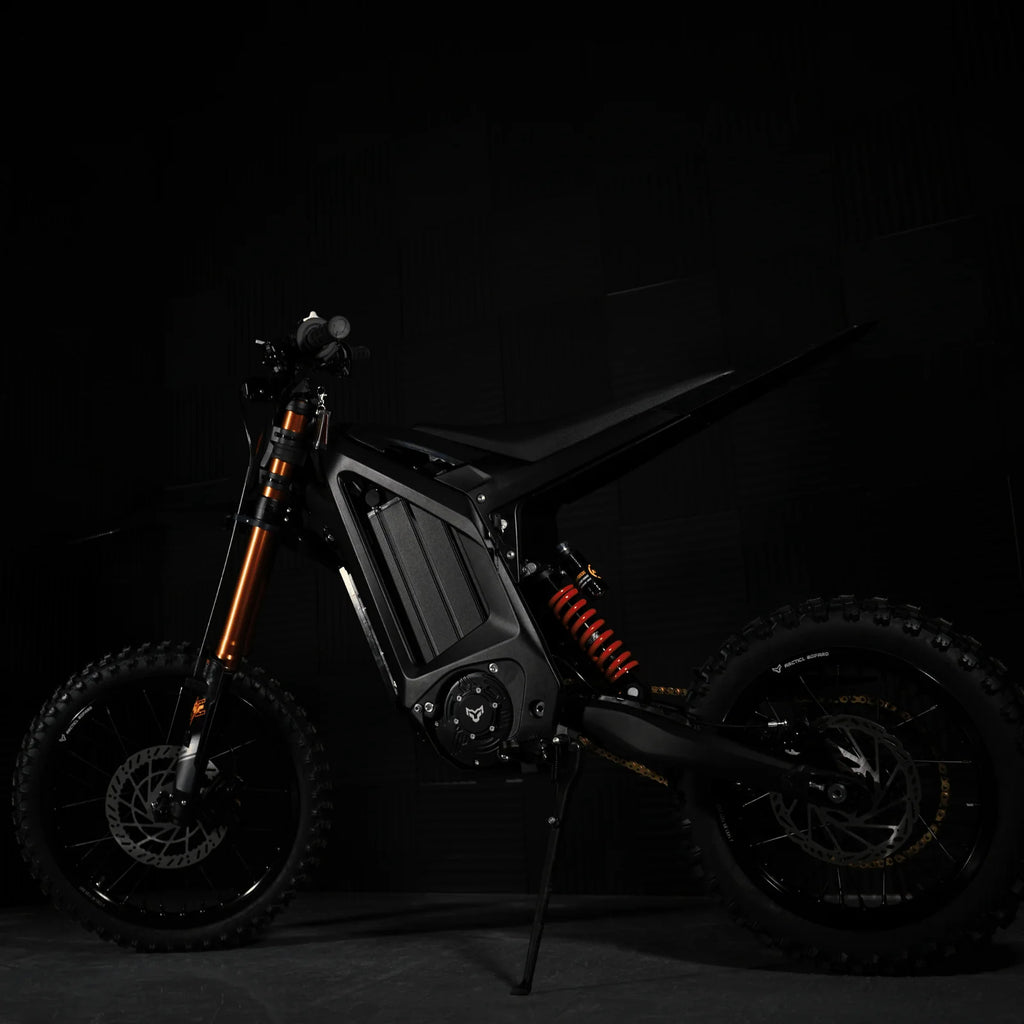

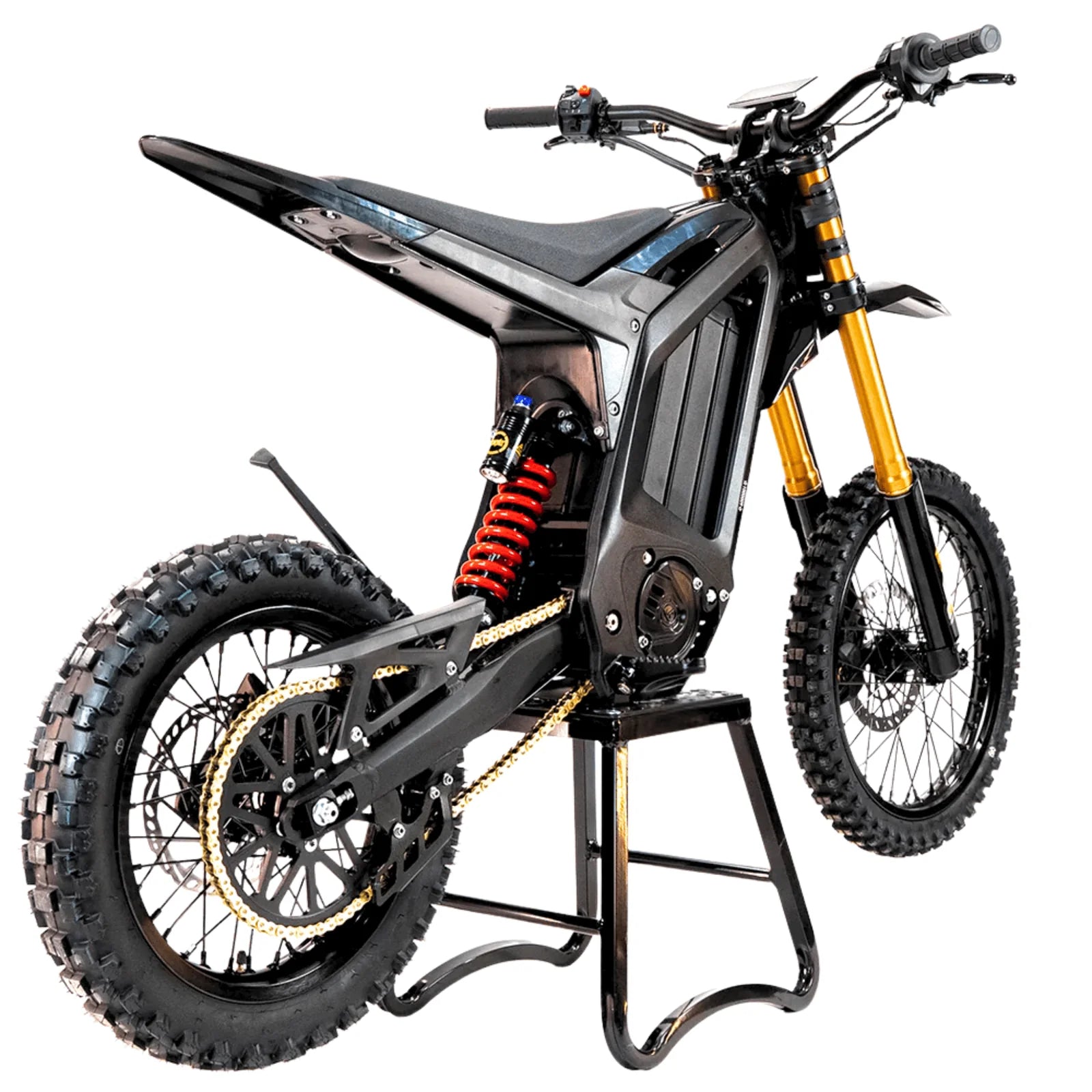

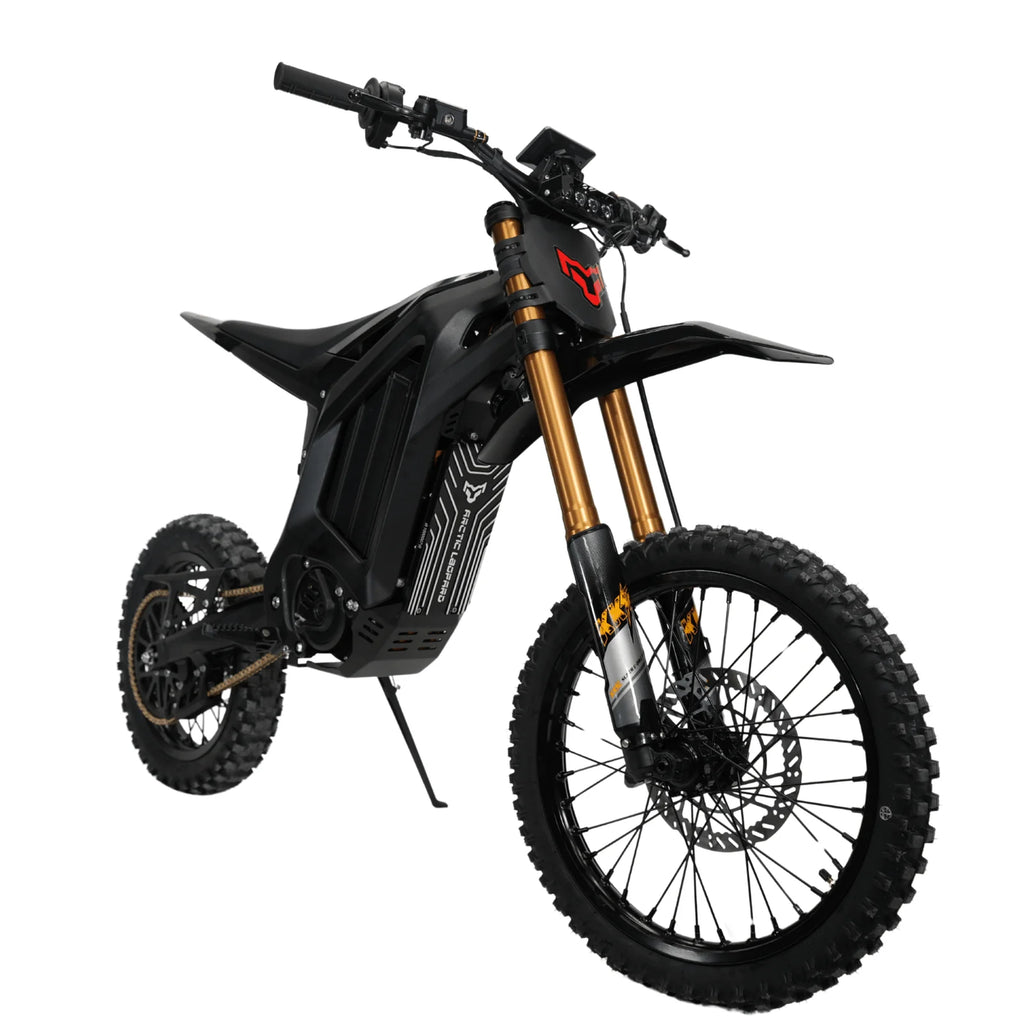

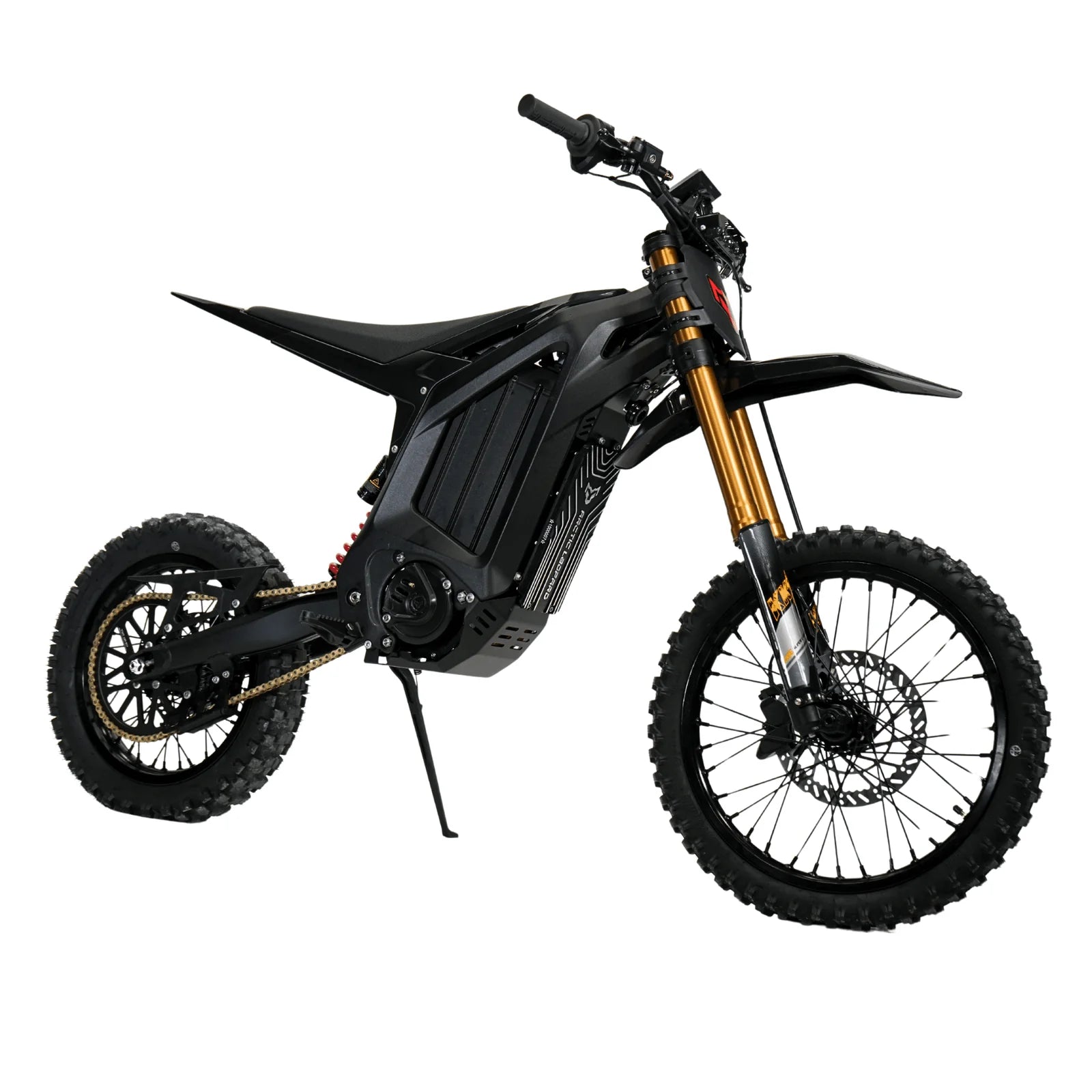

ARTIC LEOPARD XF

Key Specs — Arctic Leopard XF

• Battery: 72V 35Ah

• Power Output: 12 kW

• Weight: 130 lbs

• Wheelbase: 47 in (1,194 mm)

• Seat Height: 33 1/4 in (845 mm)

• Wheelset: 17” front / 14” rear

• Drive System: Direct drive

• Seat: Full-length

• Security: NFC or password unlock

• Display: Large full-color display

• Dimensions & Weigh
  • Wheelbase: 1200 mm / 47.25 in

  • Seat Height: 770 mm / 33.3 in

  • Vehicle Weight: 130lbs

Powertrain

• Motor Output: 12 kW Peak (16.5 HP)

• Wheel Torque: 342 Nm

• Top Speed: 45mph

• Estimated Range: 59 miles at 25 mph / 95 km at 40 km/h

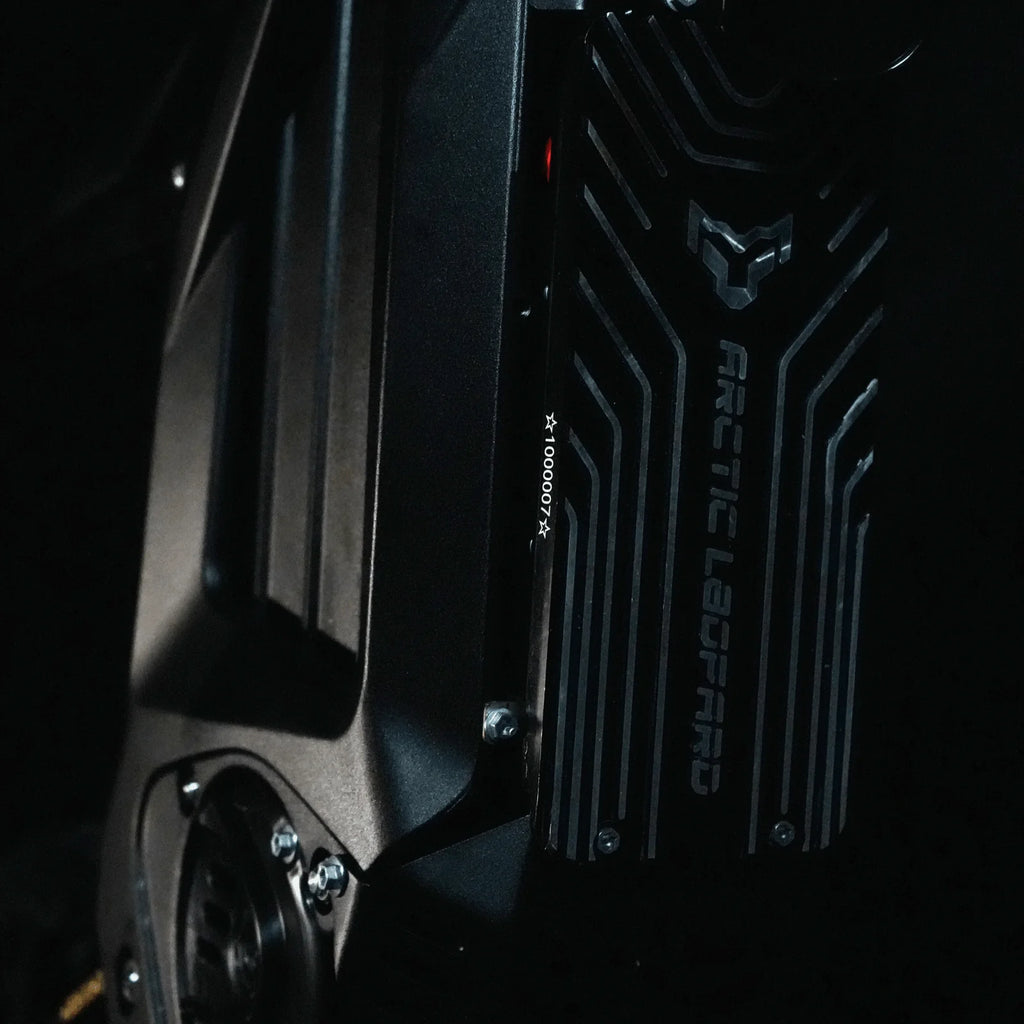

• Battery Pack: 72V 35Ah Lithium Battery

Suspension

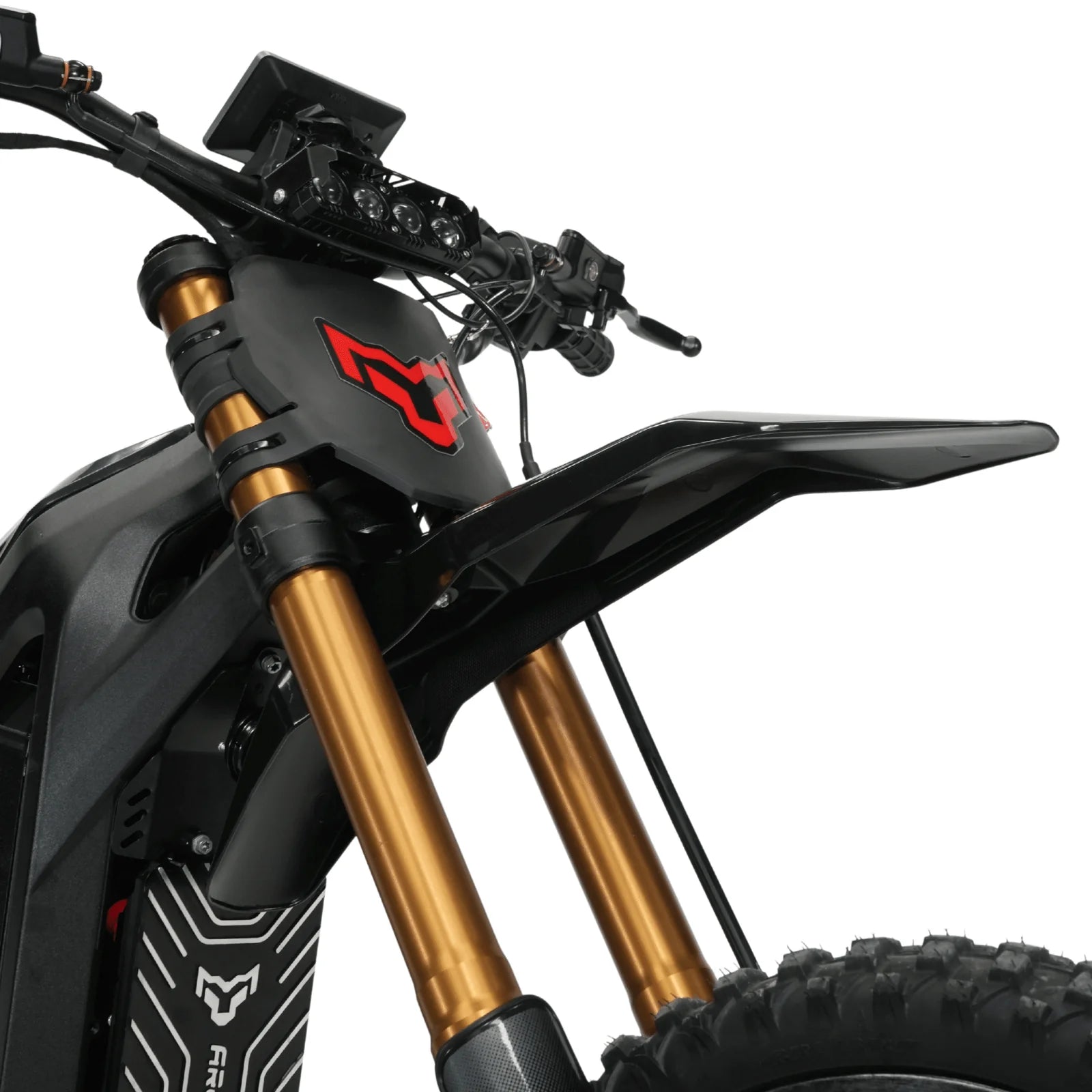

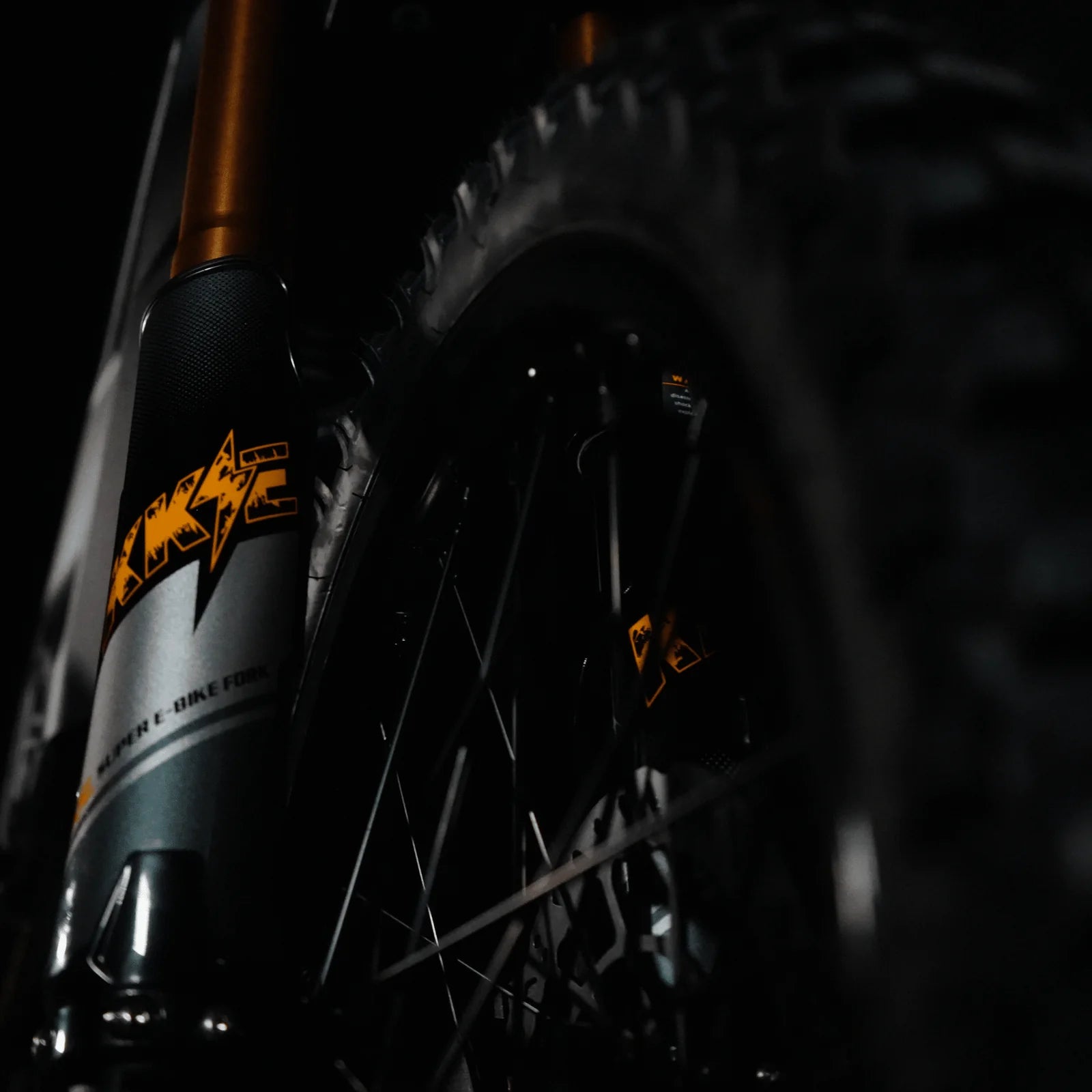

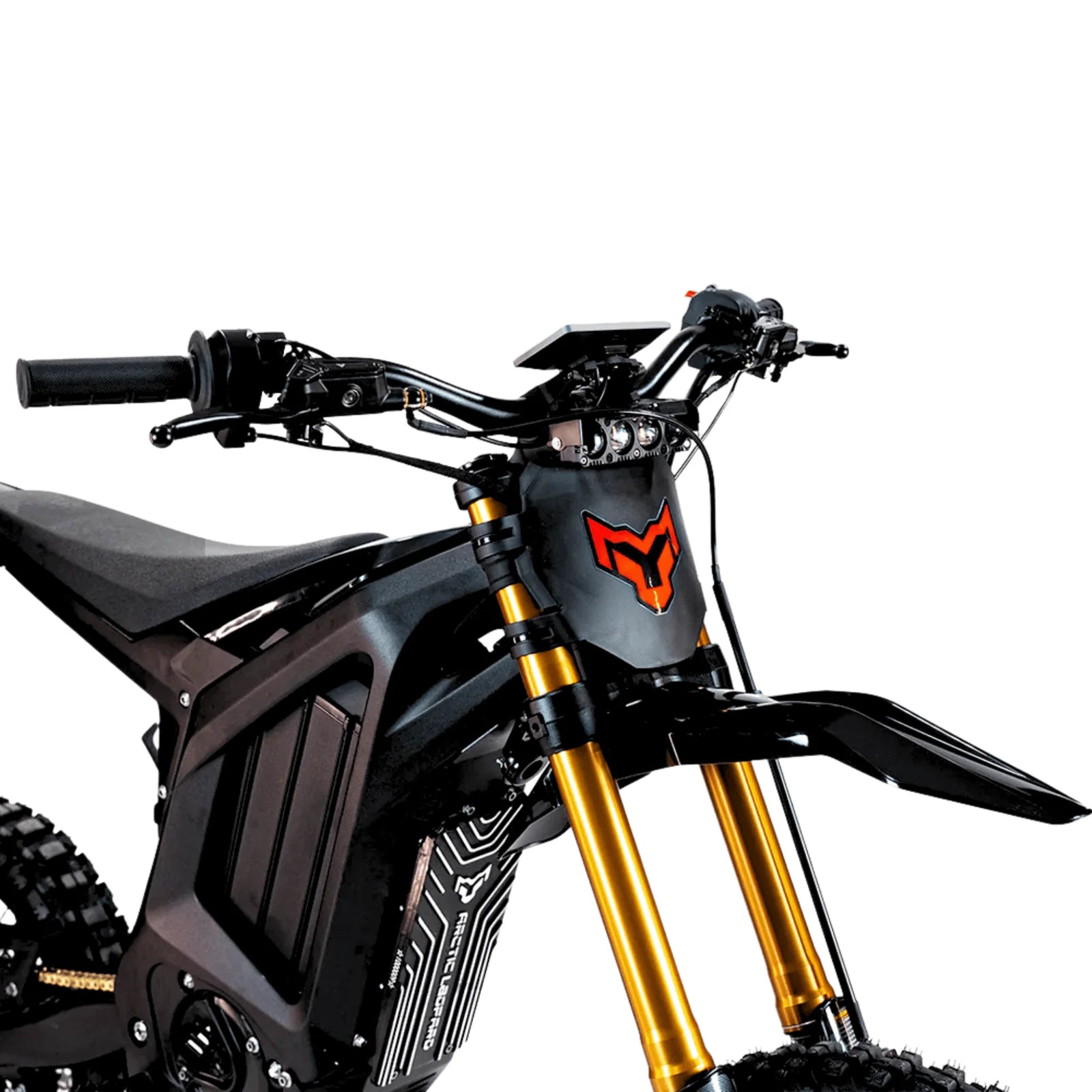

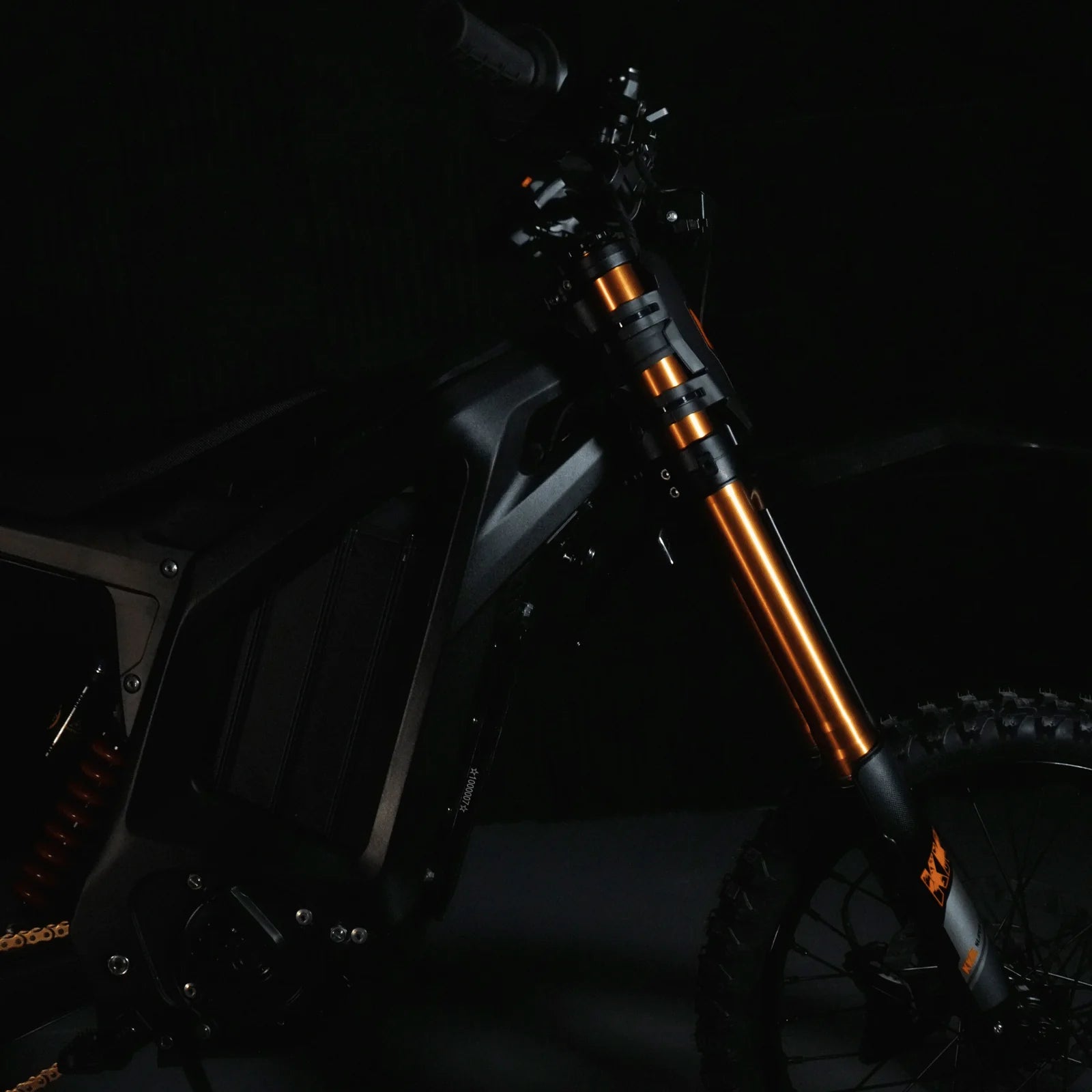

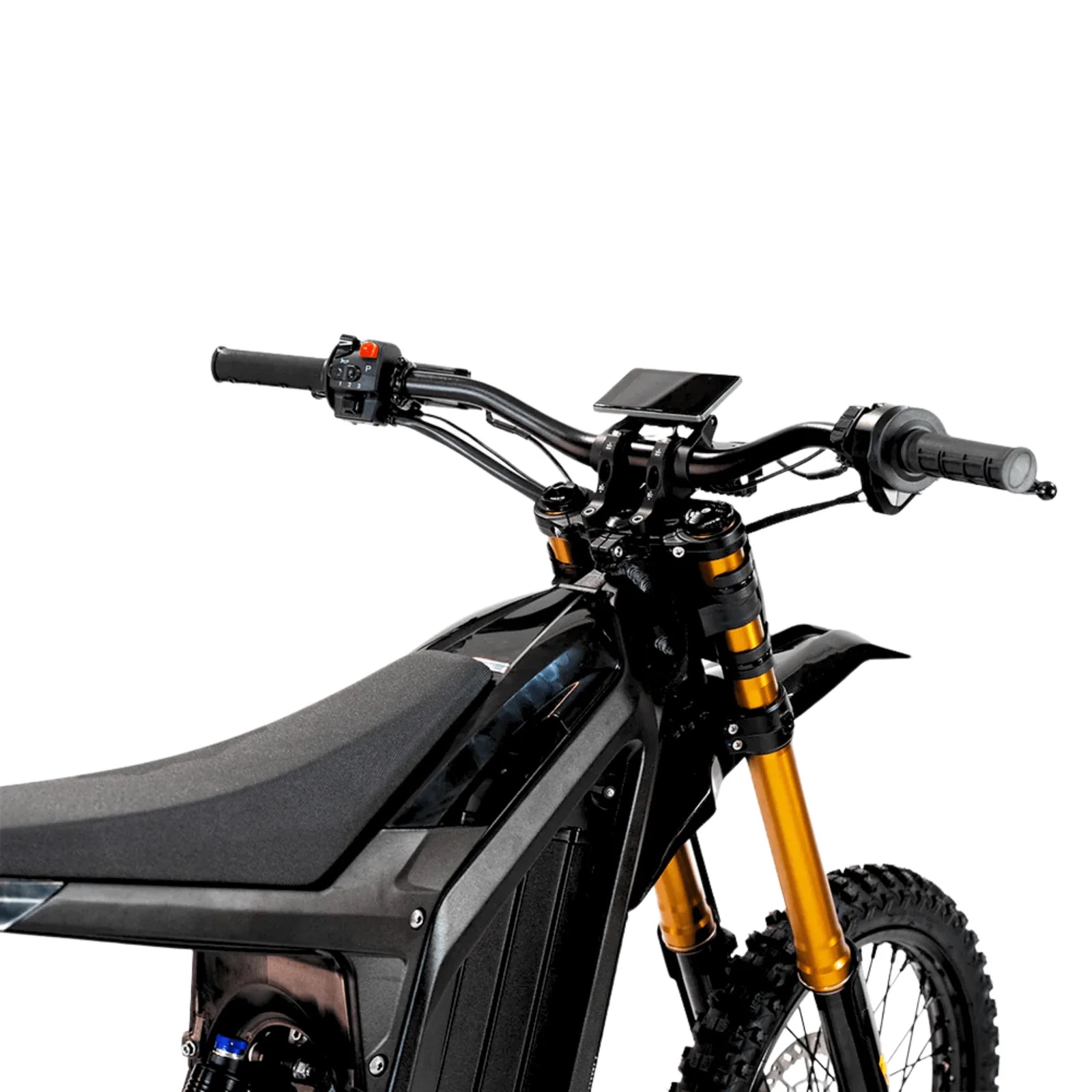

• Front Suspension: Gold KKE 35 mm Fork, Rebound & Preload Adjustable

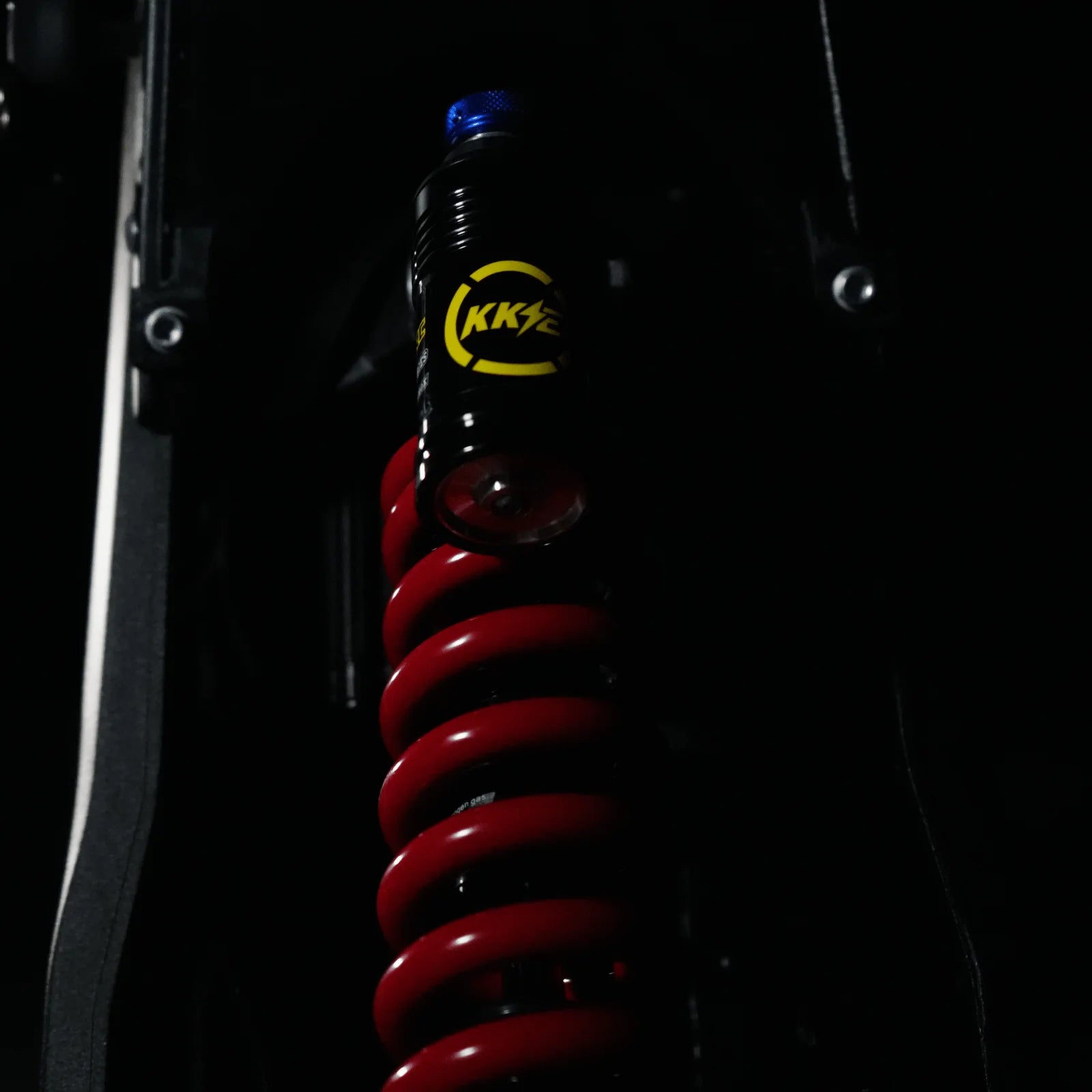

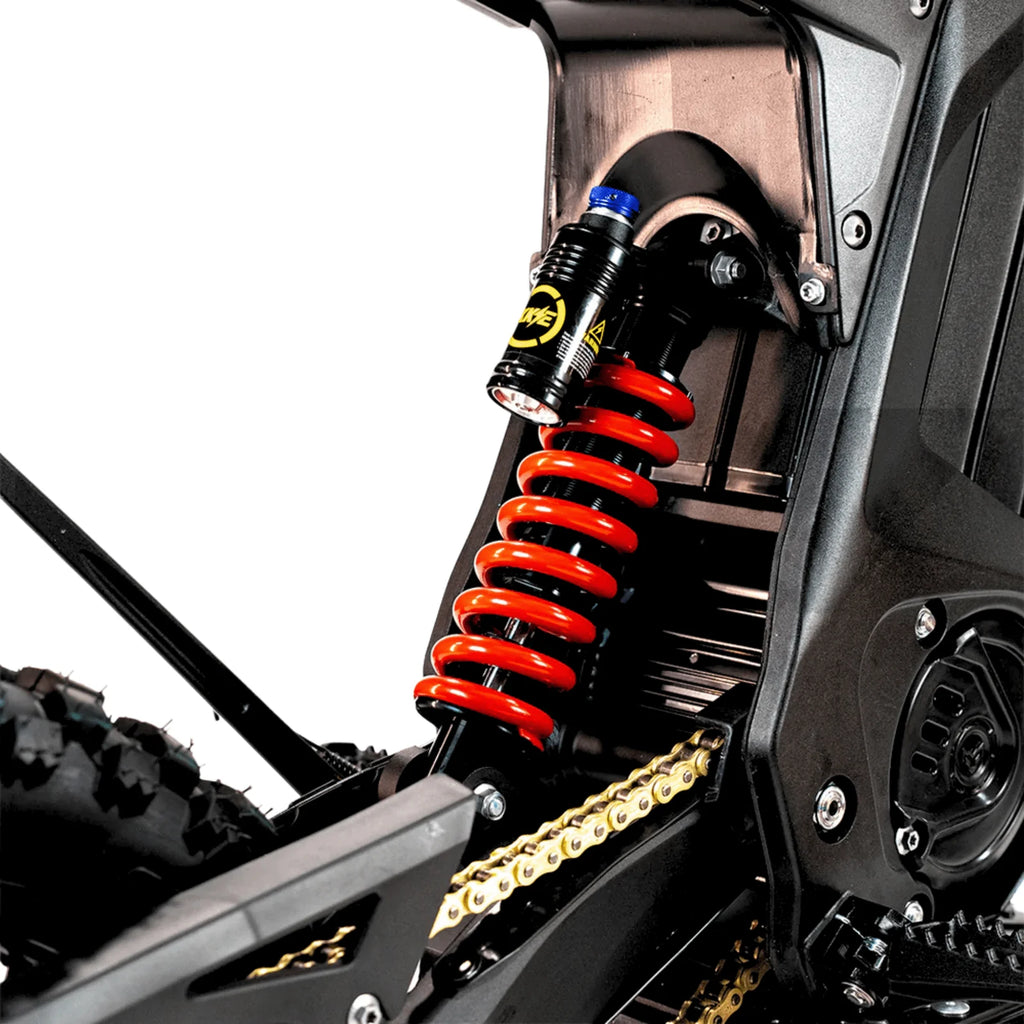

• Rear Suspension: KKE Shock, Compression, Rebound & Preload Adjustable

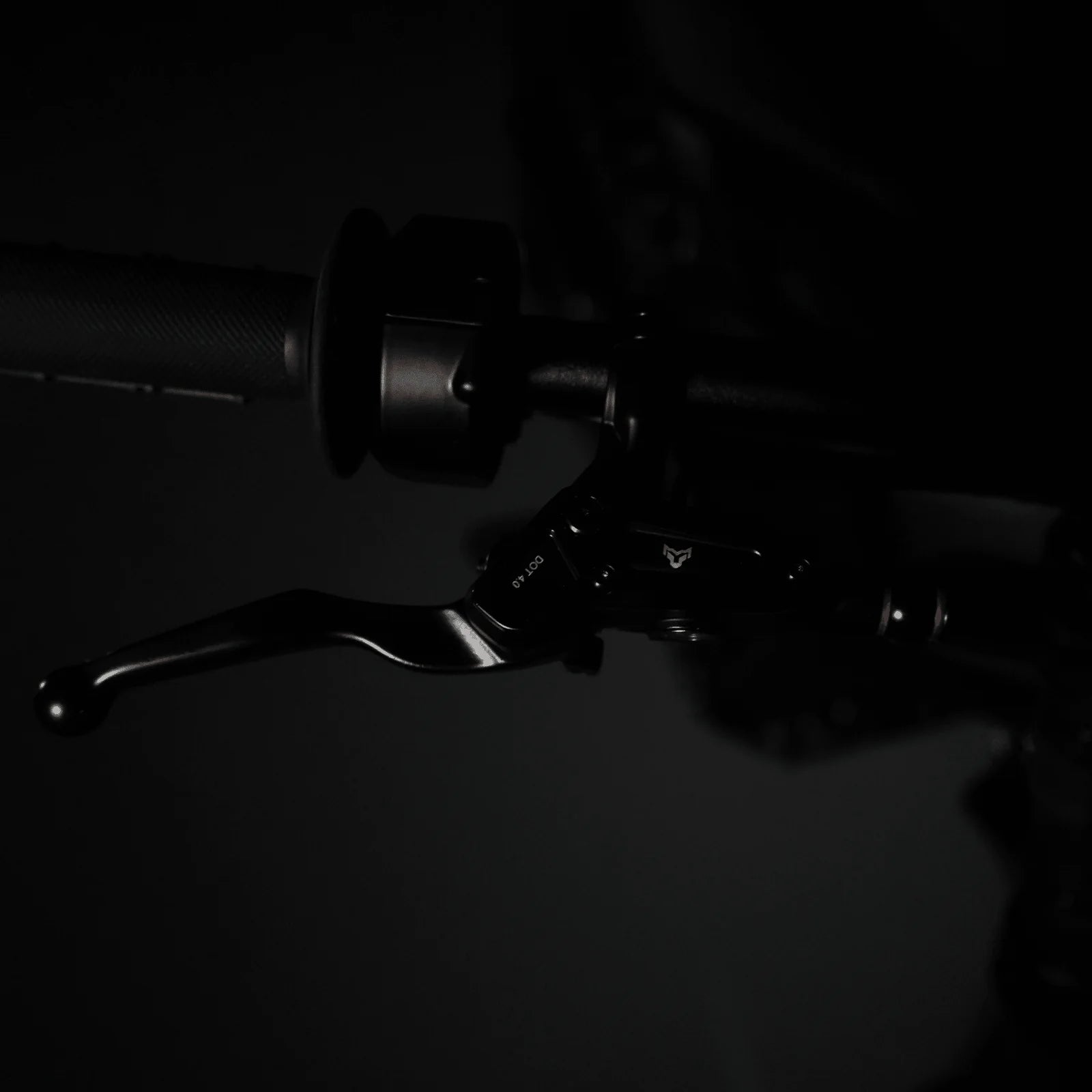

Brakes

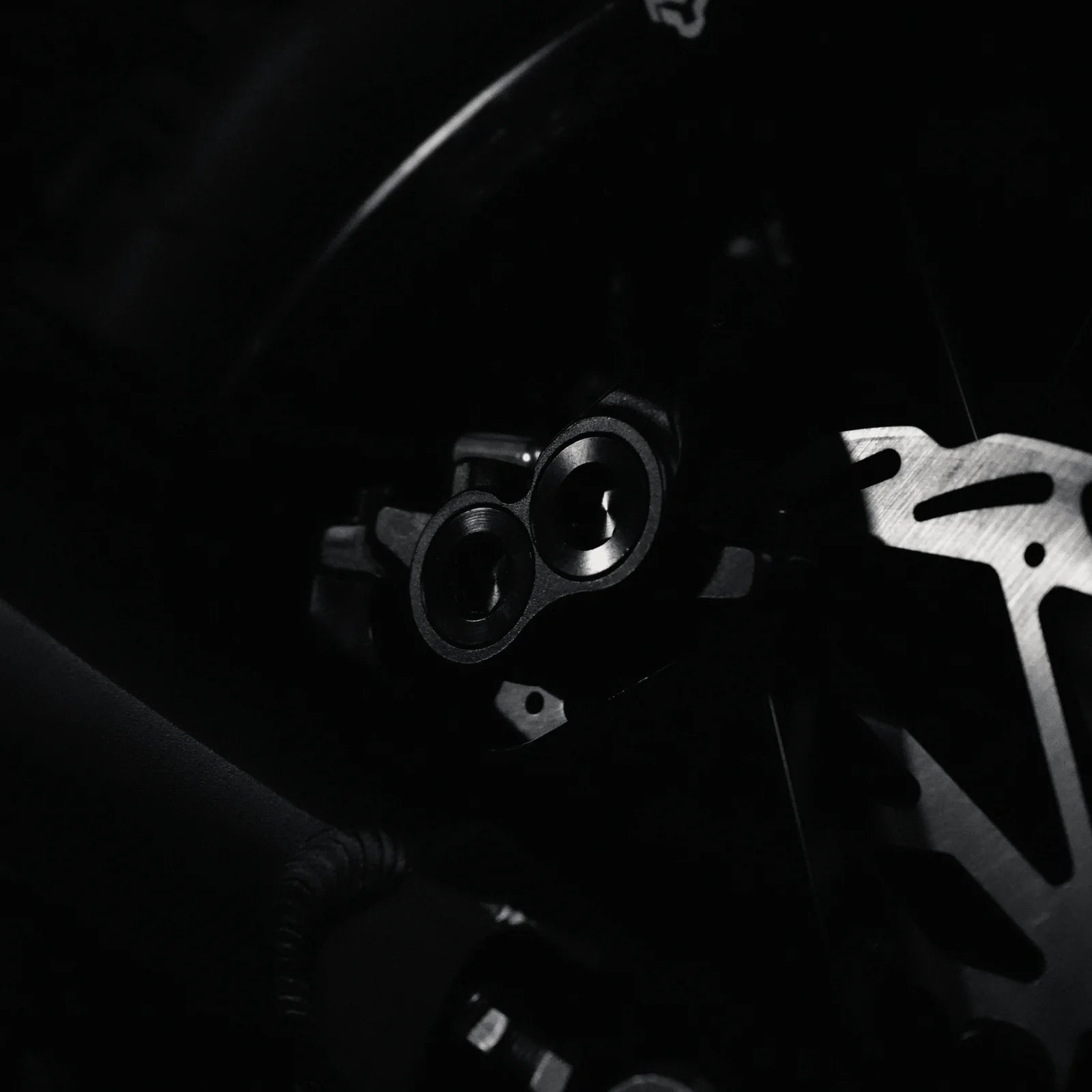

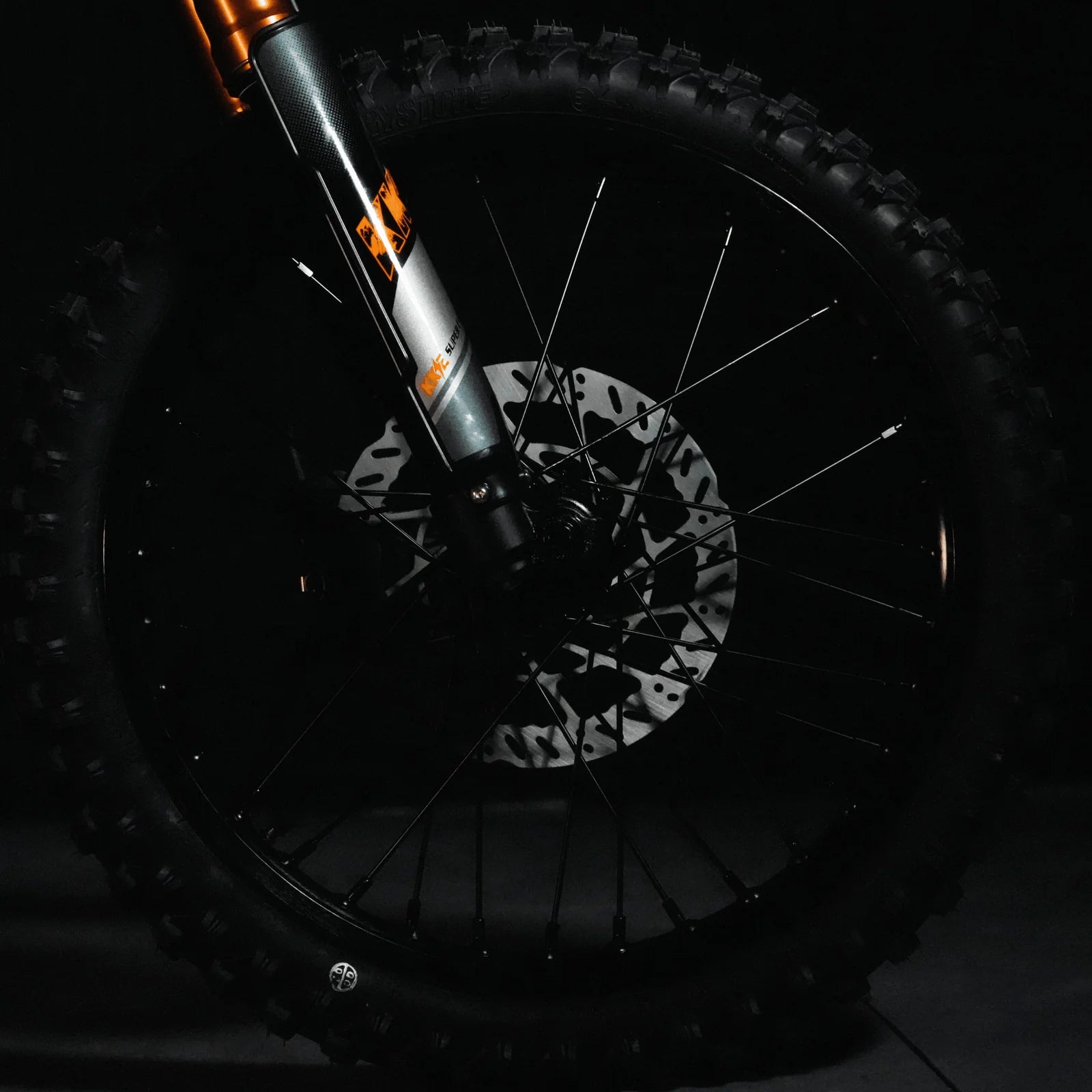

• Front Brake: 220 mm Rotor, 4-Piston Caliper

• Rear Brake: 203 mm Rotor, 4-Piston Caliper

Wheels and Tire

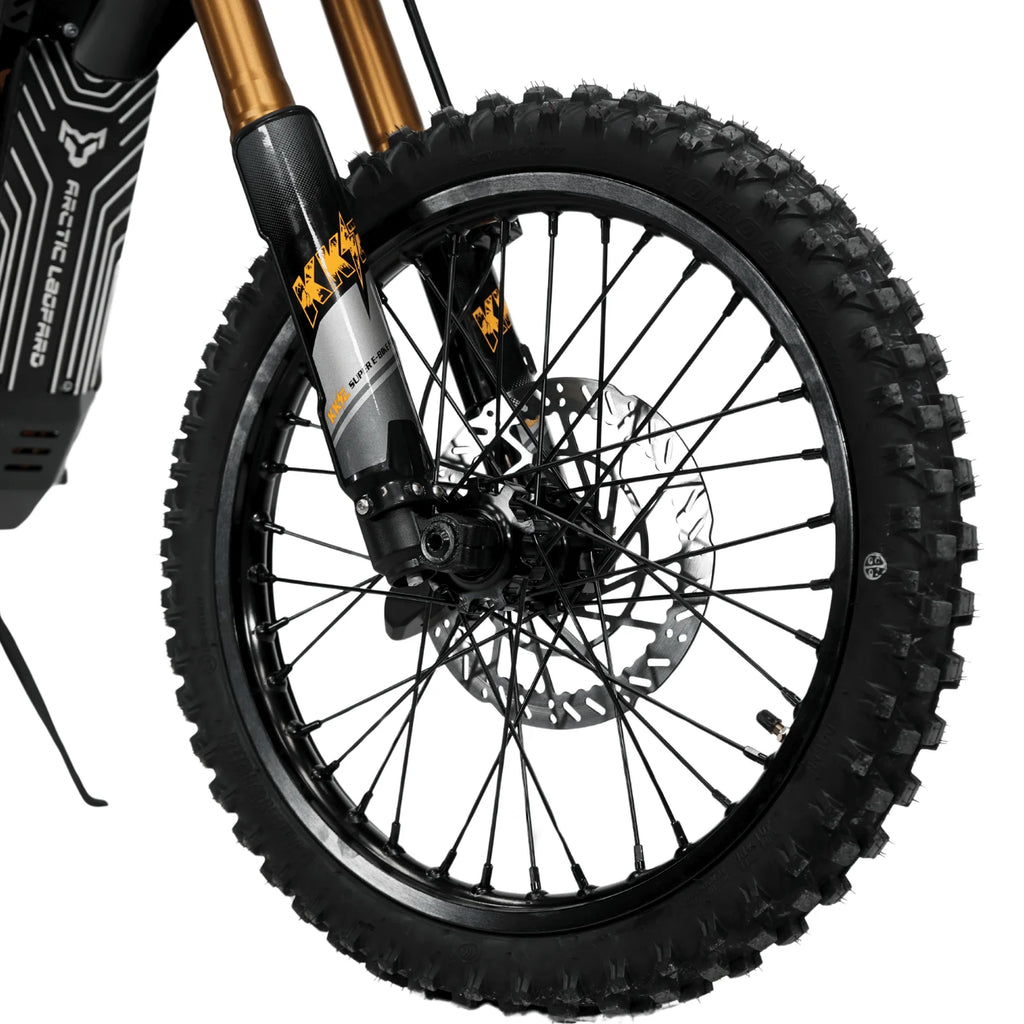

• Front Wheel & Tire: CNC Straight-Pull Hub, 70/100-17 Tire
• Rear Wheel & Tire: CNC Straight-Pull Hub, 90/100-14 Tire

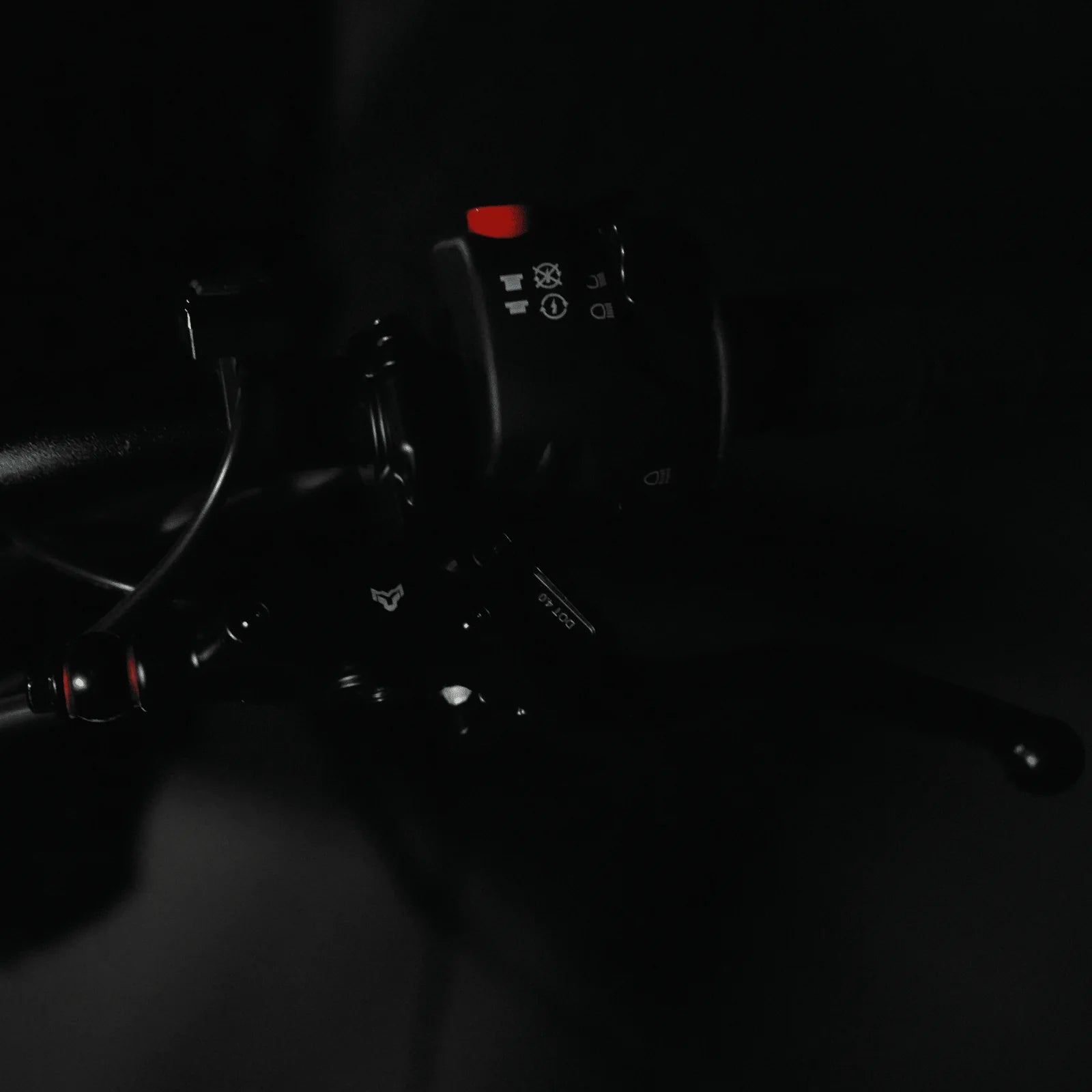

Electronics & Controls

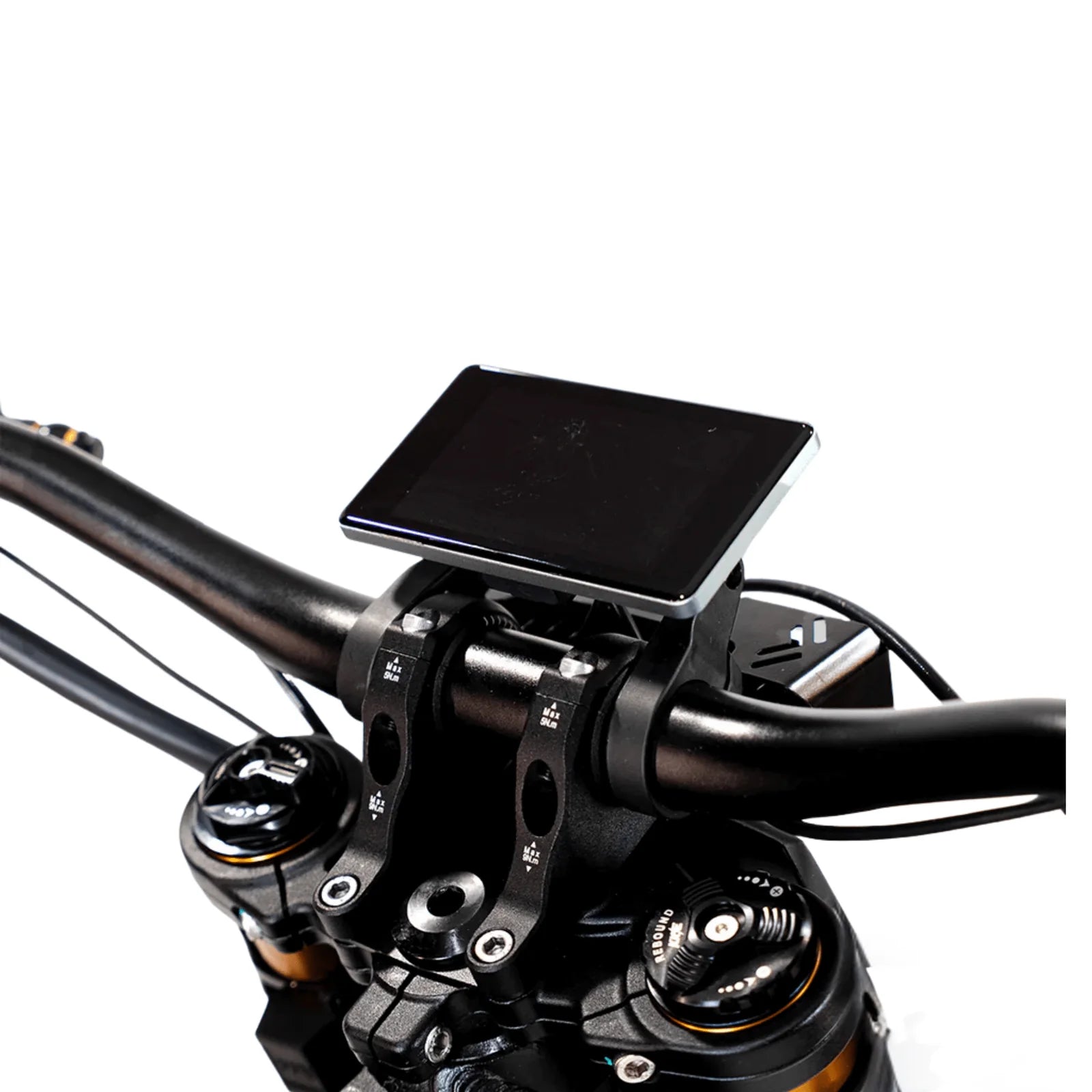

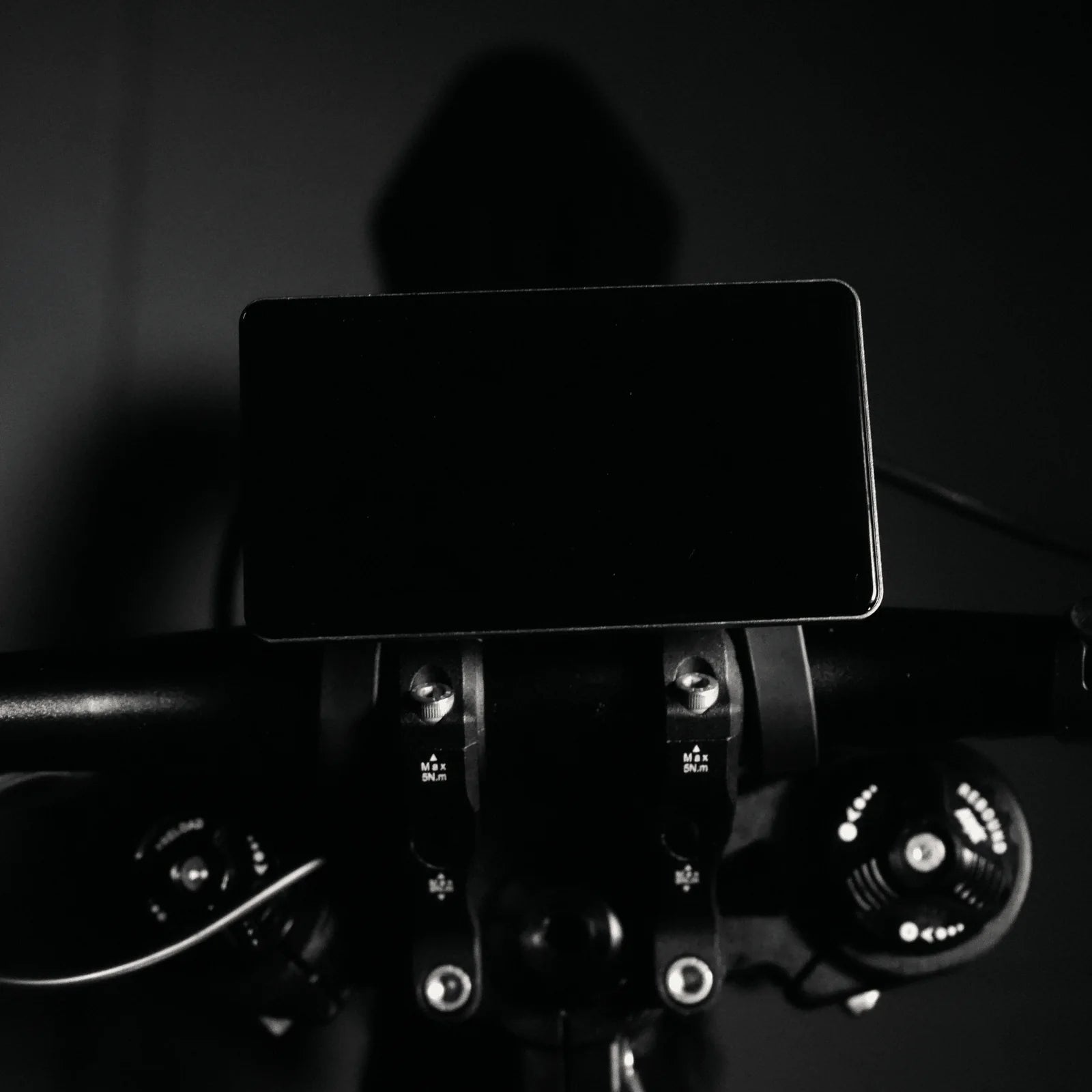

• Display & Access: TFT Display with NFC Access

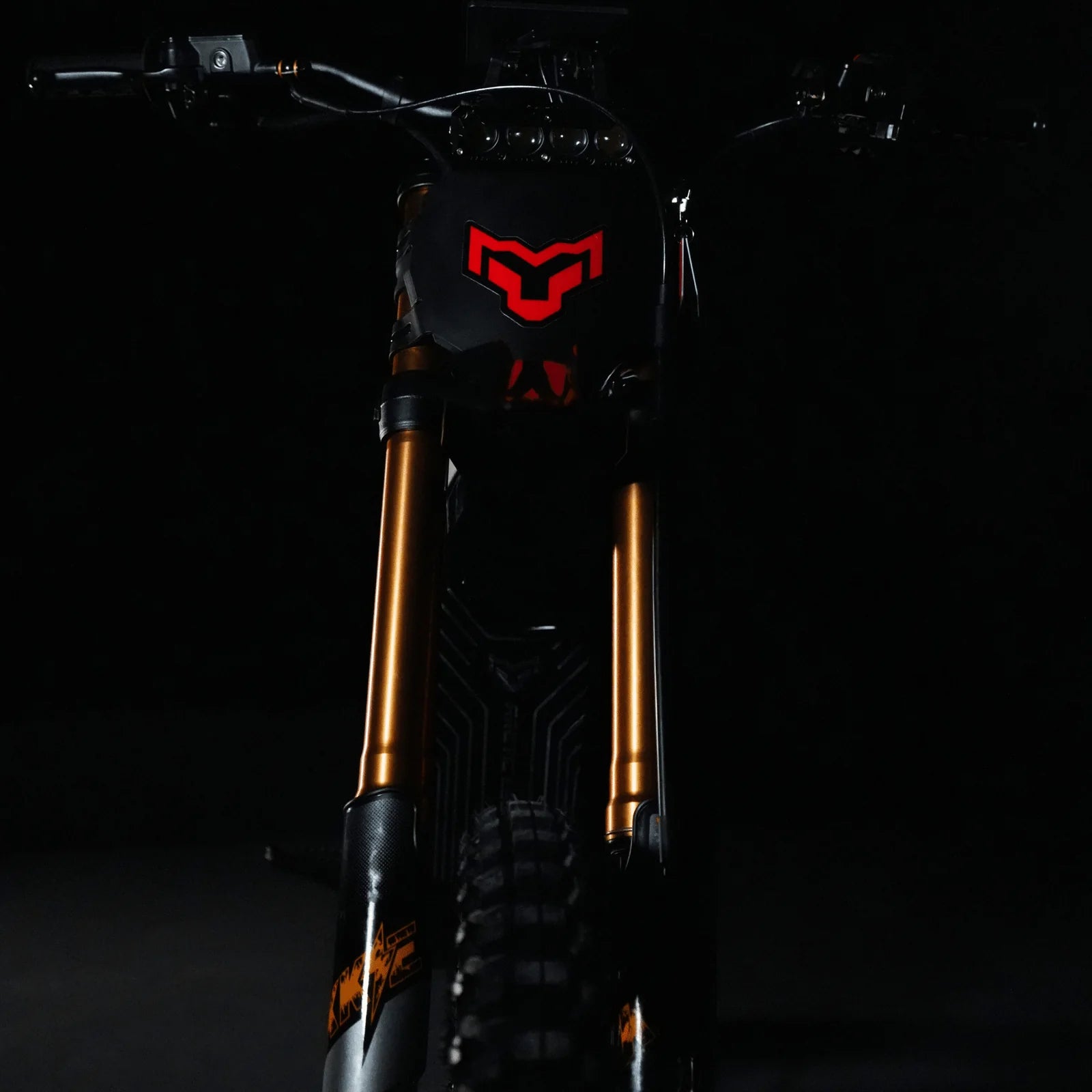

• Lighting: LED Headlight

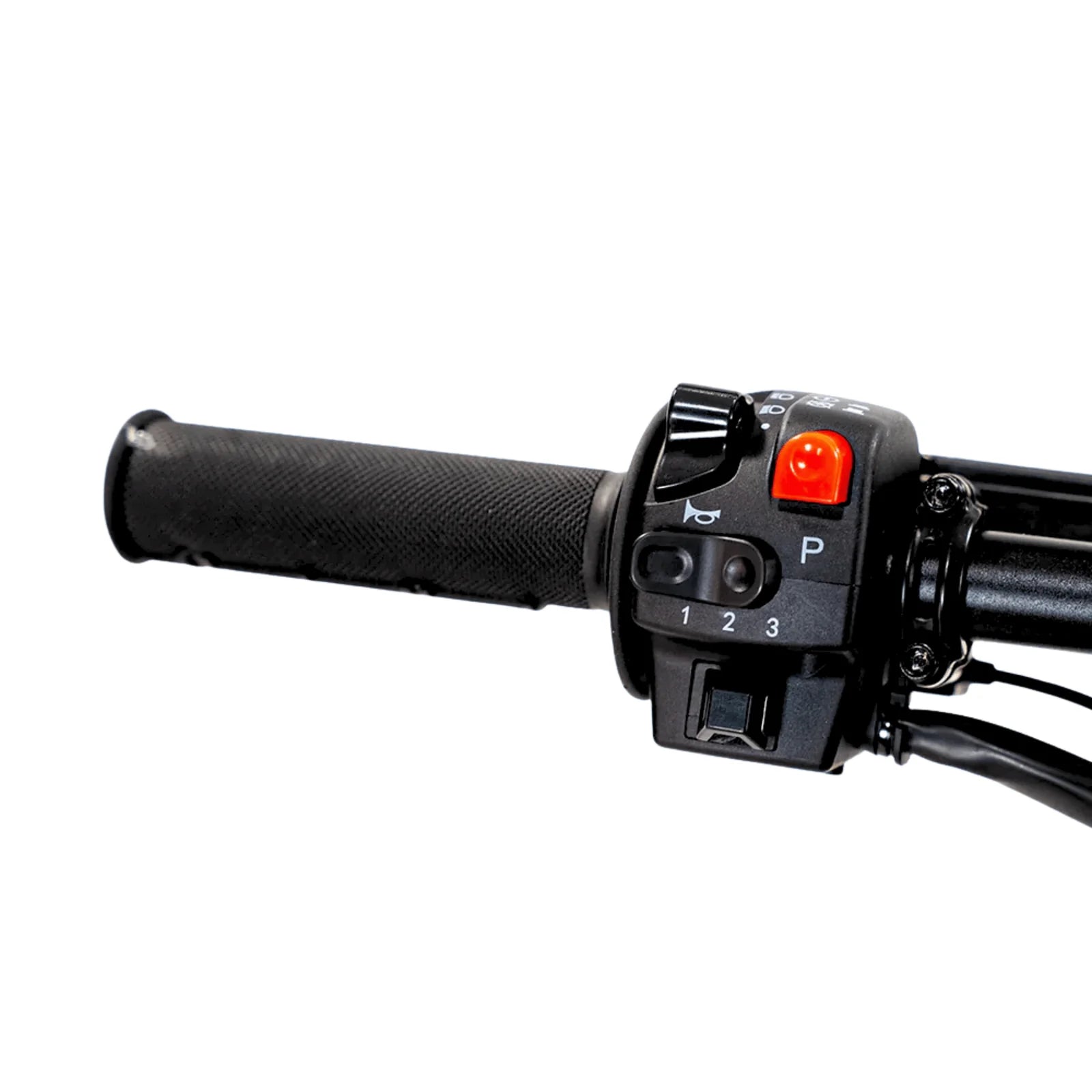

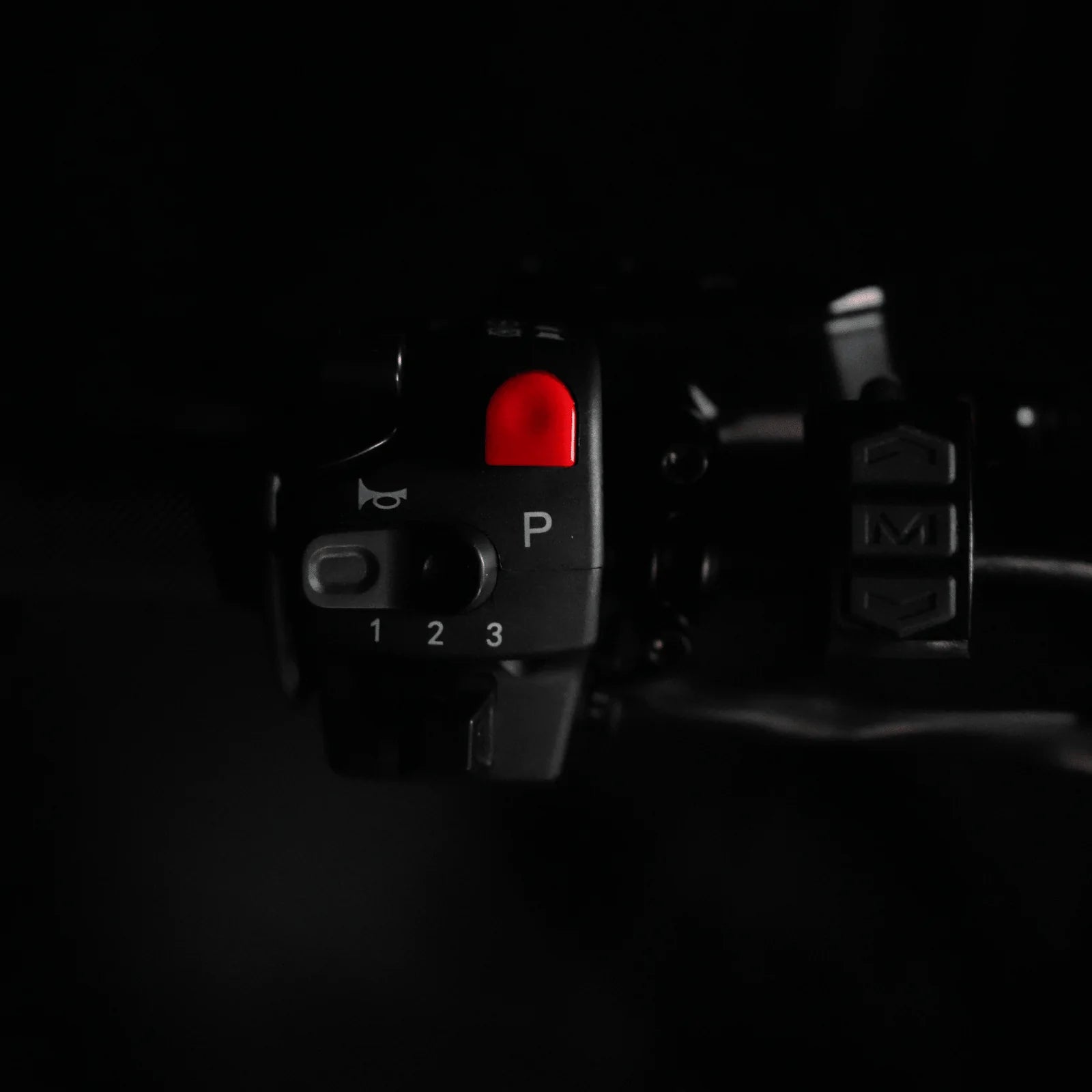

• Horn: Integrated Electric Horn
